Manipulating phase competition in La1.8-xEu0.2SrxCuO4

Figure credit: Fink, et al.

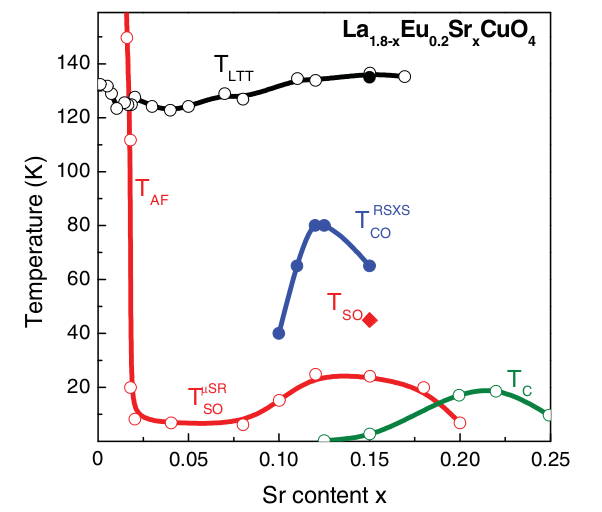

Phase diagram of La1.8-xEu0.2SrxCuO4, showing the structural LTT transition and the onset of charge ordering at TCO, spin ordering at TSO, and superconductivity at Tc. Superconductivity is suppressed around x = 1/8, where charge ordering is strongest.
We have shown that selective light excitation appears to restore superconducting coupling throughout the charge ordered regime in x = 1/8 doped La1.8-xEu0.2SrxCuO4 (LESCO x). Both superconductivity and "striped" spin and charge order organize within the CuO2 planes of this family of lanthanide cuprates, with charge ordering typically stabilized by an underlying lattice distortion. Charge stripes are associated with the suppression of superconductivity, with bulk superconductivity completely destroyed in LESCO at x = 1/8 doping, where the lattice spacing syncs with the stripe periodicity.

The key to restoring superconducting coupling was to tilt the energetic balance against charge ordering by preferentially destroying stripes without introducing quasiparticle excitations that would break superconducting pairing. An Eu-symmetric phonon mode associated with the stretching of the Cu-O bonds was chosen with the aim to disrupt the stripe synchronicity with the lattice. After the first experiments on LESCO, it was shown that in related compound La1.875Ba0.125CuO4 (LBCO 1/8) that this excitation does in fact promptly reduce charge stripe order, on the same timescale that superconducting coupling is restored in LESCO.

Figure credit: (A) Crystal structure, Jörg Harms (B, C) C. R. Hunt

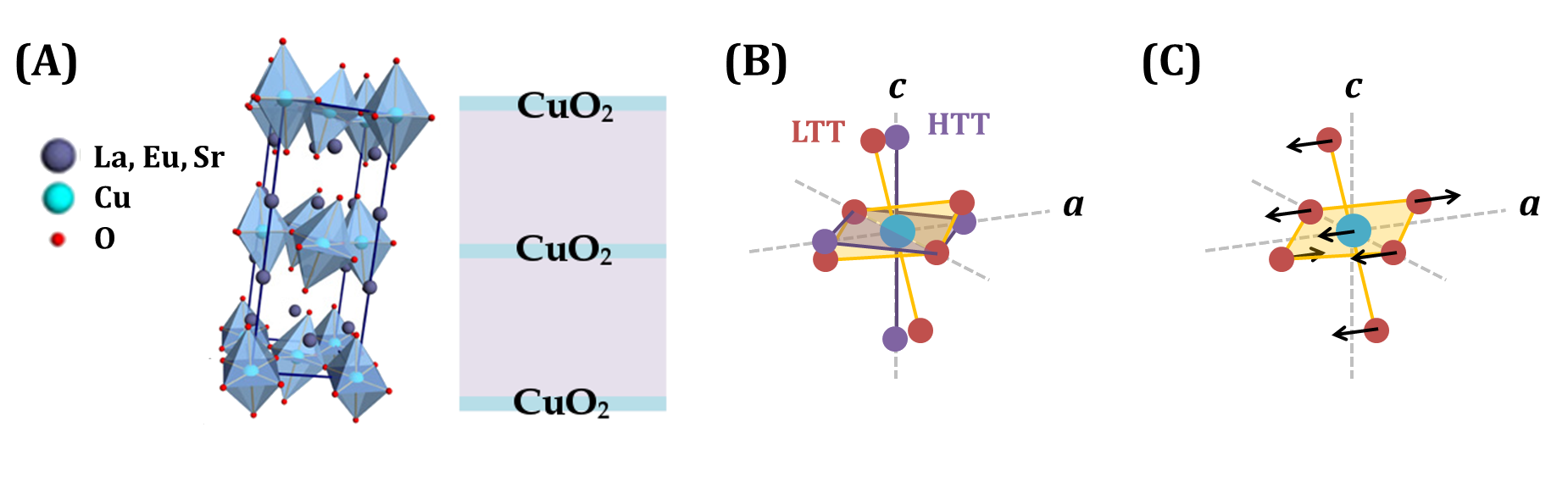

(A) All cuprates are organized as stacks of CuO2 planes. Here, the copper atoms are in blue and oxygen in red. (B) The low-temperature tetragonal (LTT) distortion precedes the charge order transition in LESCO and is thought to stabilize the CO state. (C) The Eu-symmetric motion of the CuO6 octehedra.

Restoring intrinsic superconducting tunneling

A single crystal of LESCO 1/8 was excited using light pulses polarized along the crystallographic a-axis and made resonant to the 15 μm Eu mode. The time-resolved light-induced optical response was measured using time-domain THz spectroscopy. The optical fingerprint for superconducting coupling in cuprates is the Josephson plasma resonance, a mode that arises due to intrinsic Josephson coupling between CuO2 planes. In a first series of measurements performed before I joined the Cavalleri group, a light-induced plasma mode was generated with a plasma frequency similar to that of the Josephson mode in related superconducting lanthanides. This transient plasma mode was detected up to 10-20 K, in the regime where both spins and charges order.

With improved experimental apparatus and a four-fold increase in pump fluence, I was able to detect this coupling up to higher temperatures, discovering that it persists throughout the charge ordered regime--up to 80 K, well above the highest Tc of any lanthanide cuprate.

Figure credit: C. R. Hunt, et al.

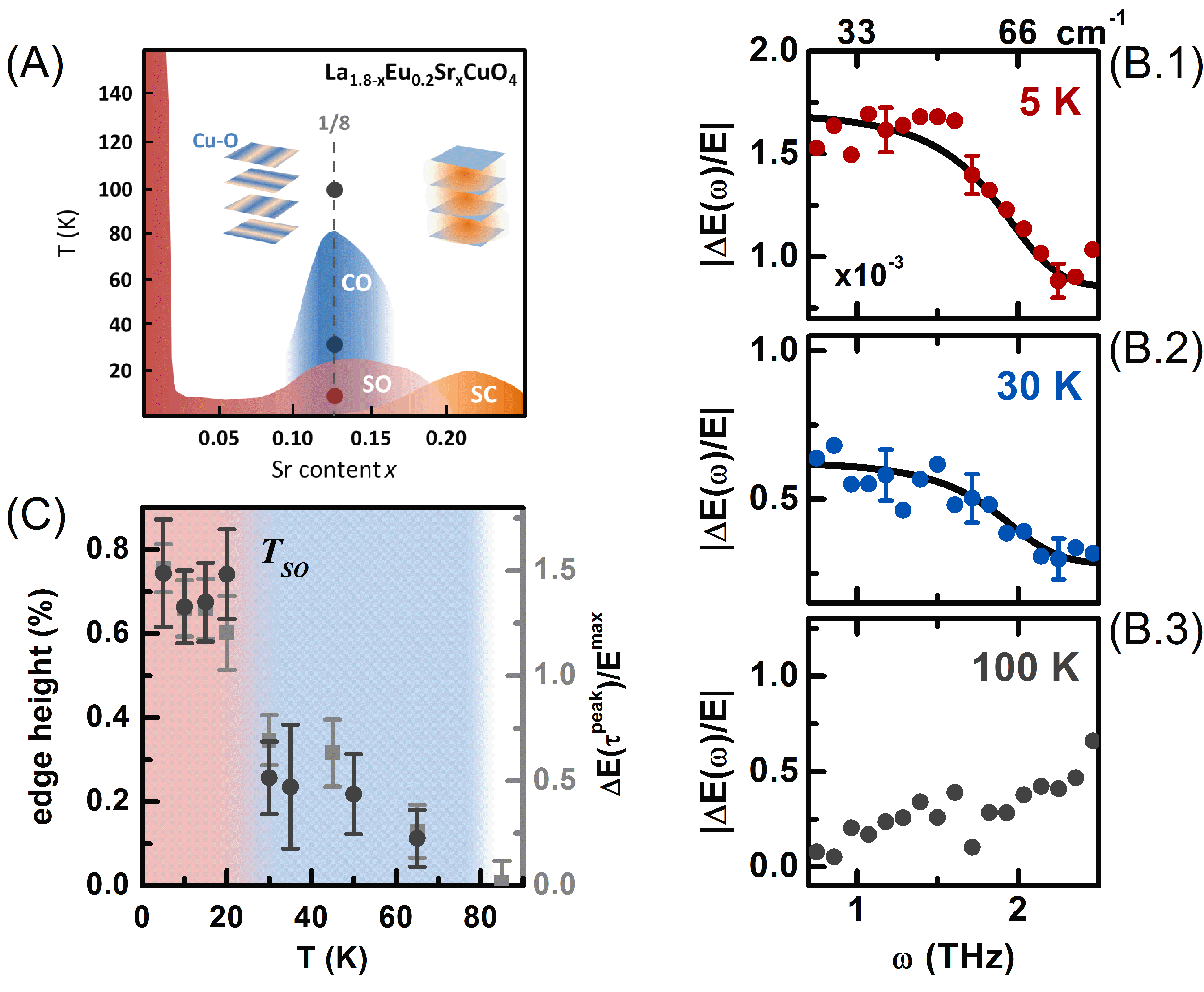

(A) Phase diagram of LESCO, highlighting the charge and spin-ordered (SO), charge-ordered (CO), and superconducting (SC) regimes. (B) Light-induced changes in the reflectivity, showing a step feature indicative of a plasma mode at 5 K and 30 K and a featureless response at 100 K. Temperatures are indicated with red, blue, and grey dots on the phase diagram respectively. (C) Plasma edge height (black) and raw amplitude of the changes in the THz response (grey) indicating the onset temperature of the plasma mode near TCO ~ 80 K.

Decoherence-driven relaxation

The relaxation pathway of the light-induced plasma mode offers further compelling evidence that the feature is related to Josephson coupling. From the reflected THz field, we extracted the full complex optical response as a function of delay time after excitation. The response was well-fit by a Drude picture of a single plasma mode. Importantly, the relaxation of the light-induced plasma mode is dominated by a collapse of the coherence length of the plasma (related to the effective scattering rate in the Drude picture), rather than by a reduction in its density (ie, the plasma frequency). This is in contrast to what is measured from excited quasiparticles, which decay by a loss in carrier density at either constant or decreasing scattering.

Figure credit: C. R. Hunt, et al.

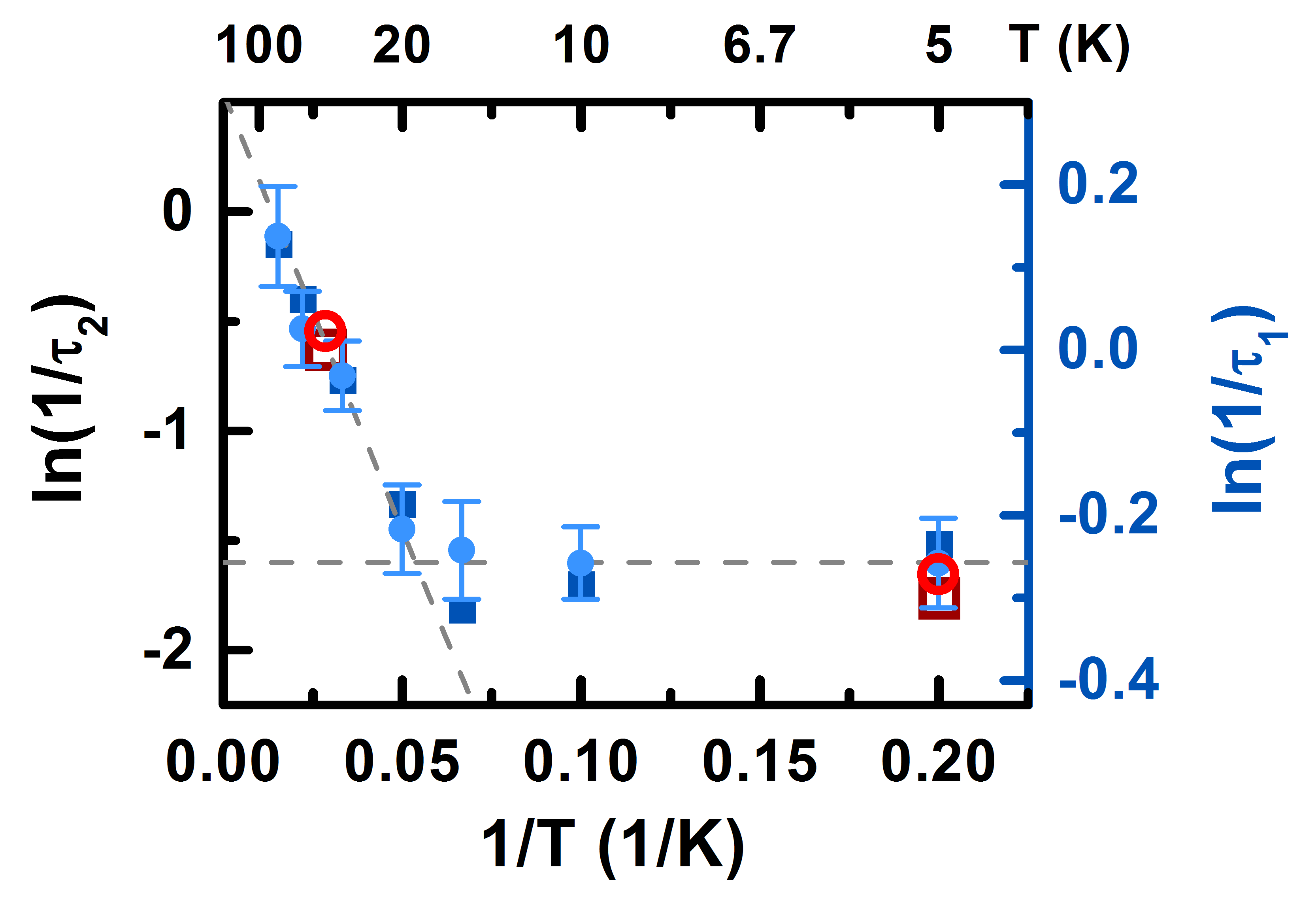

An Arrhenius plot of the relaxation rate as a function of temperature. The short lifetime (dark blue squares) and the long lifetime (light blue circles) track the decay of the coherence length of the transient plasma.
The relaxation can also be divided up into two distinct kinetic regimes, below and above the spin order transition TSO. Below the charge ordering transition but above TSO, the relaxation timescale follows Arrhenius behavior, the expected kinetic behavior for a transition between two distinct thermodynamic phases separated by a free energy barrier. The energy barrier is on order 4 meV, which intriguingly corresponds to the energy scale of spin fluctuations measured in LSCO 1/8, suggesting that the transition between the two phases may be regulated by spin rearrangements. Strong spin fluctuations are known to develop between TSO and TCO.

The departure from activated behavior below TSO may therefore be related to the freezing out of spin fluctuations. A temperature-independent relaxation rate would be compatible with quantum coherent tunneling between two states, for instance between superconducting and "pair density wave" phases at constant carrier density.

Charge order mingles with superconductivity?

Photo credit: Först, et al.

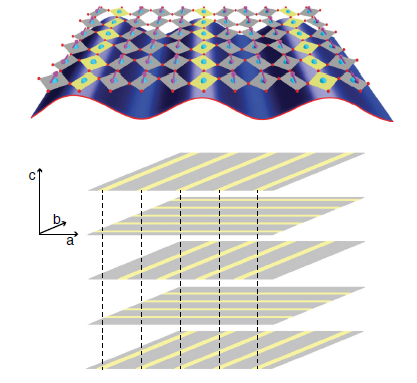

Charge stripe order may enforce a spatial periodicity on the superconducting order parameter, preventing pairs from tunneling between planes.
The suppression of superconductivity by charge order may not to be a simple competition between charge density wave and superconducting instabilities. Rather, superconductivity may coexist with charge ordering, which imposes a space dependence on the superconducting order parameter phase. This spatial modulation, referred to as a "pair density wave" state, suppresses the total Josephson tunneling by disruptive interference, effectively quadrupling the unit cell.

The proposed pair-density wave state is one example of "intertwined order," in which multiple orders interact to determine the complex behavior of a material. A similar type of multi-component order parameter that encompasses both charge density wave and superconducting states has been described to model the entire cuprate pseudogap.

Publications associated with this research

  • "Two distinct kinetic regimes for the relaxation of light-induced superconductivity in La1.675Eu0.2Sr0.125CuO4,"

    C. R. Hunt, D. Nicoletti, S. Kaiser, T. Takayama, H. Takagi, and A. Cavalleri.

    Phys. Rev. B 91, 020505(R) (2015). Rapid Communication Editor's Suggestion arXiv

  • "Melting of charge stripes in vibrationally driven La1.875Ba0.125CuO4: Assessing the respective roles of electronic and lattice order in frustrated superconductors,"

    M. Först, et al.

    Phys. Rev. Lett. 112, 157002 (2014). arXiv

  • "Light-induced superconductivity in a stripe-order cuprate,"

    D. Fausti, R. I. Tobey, et al.

    Science 331, 189 (2011). pdf
